Global Sales OEM tailor design
Product name: Dam Ring/Dam Ring Segment/Dam Ring for Grinding Table/Grinding Table Dam Ring
Production process: Casting,Welding
Applicable machines: Ball Mill, Vertical grinding mill, Tube Mill,etc.
Applicable industries: Cement, stone,concrete, coal, steel, power, etc.
Adaptable materials: granite, basalt, limestone, river pebbles, cement clinker, coal, metal mines, etc.
Material types: Alloy steel, hard alloy, high chromium cast iron, ceramics,etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.

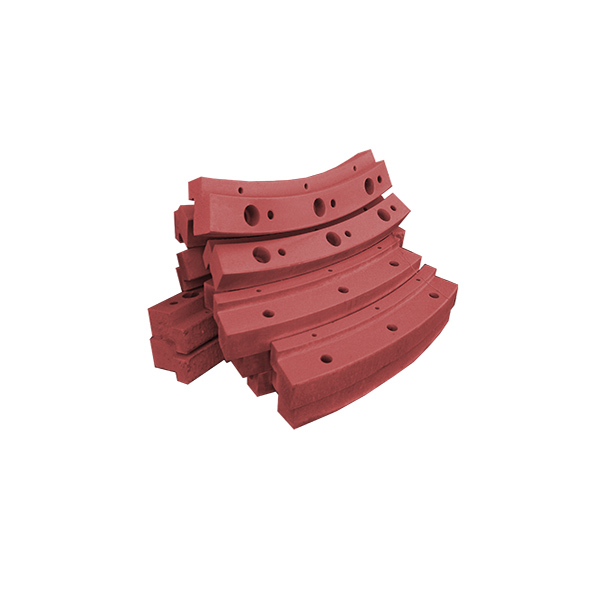

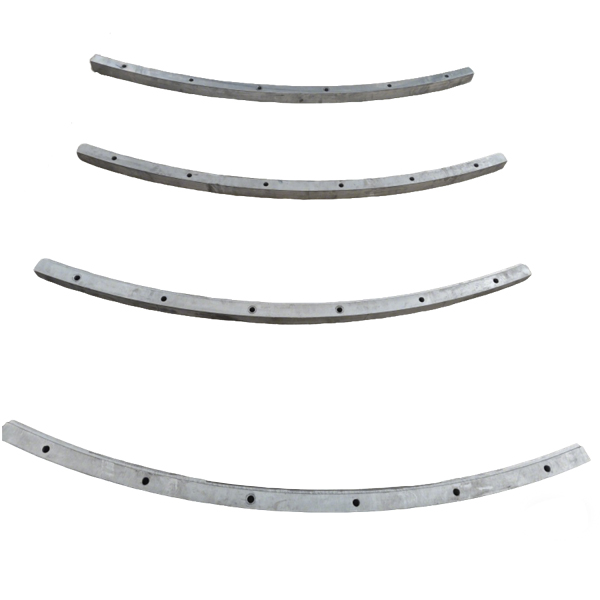

Dam ring segments for vertical roller mills, cast in high-chromium iron or Mn-Cr alloy to the height and profile your bed depth requires. Zhili keeps segment dimensions and the joint geometry accurate so the ring assembles without steps and retains material consistently around the table.
If you need detailed technical information, drawings or a price for a size we have not listed, please email us at cnwearparts@lyzhili.com — we are a customized factory for crusher and mill wear parts and we quote quickly.

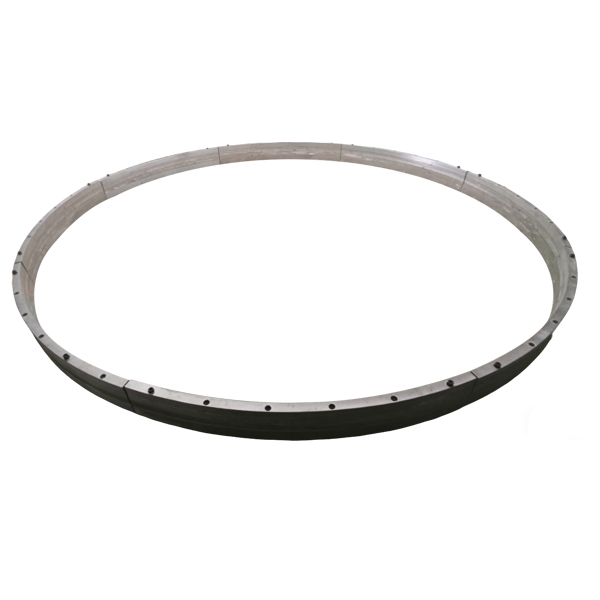

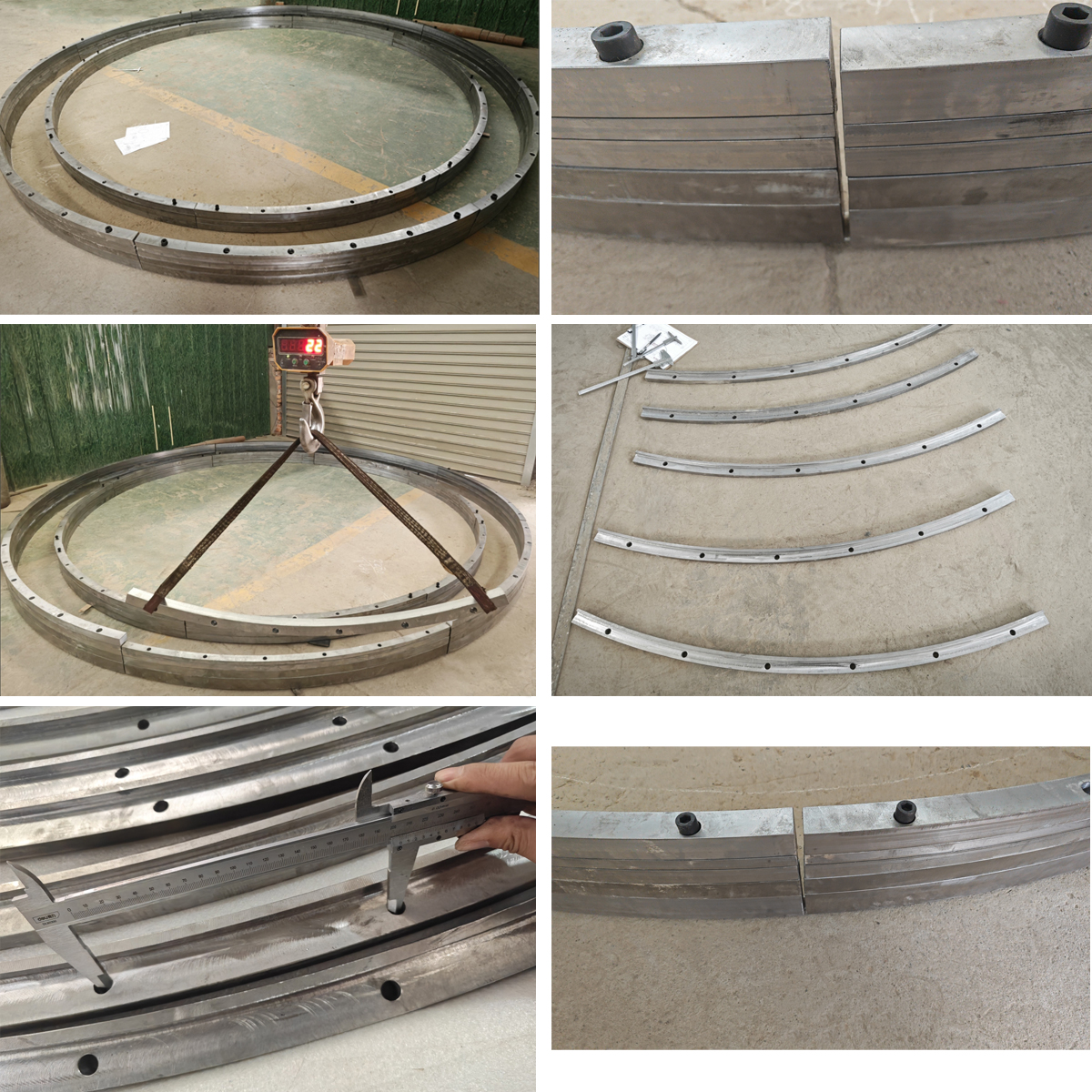

The dam ring keeps material on the grinding table long enough to be ground, and its height directly affects bed depth, mill vibration and product fineness. As it wears down, throughput character changes. Zhili casts segments with the correct height and profile for your operating point, and with an alloy that resists erosion by the moving bed.
Vertical roller mills for cement raw meal, clinker and slag grinding, coal mills and mineral vertical mills.
Tell us the mill model, ring diameter and required height. We confirm the alloy, segment count and lead time, and can advise on the height change needed to reach your target bed depth and fineness.
Share your drawing, OEM part number, operating conditions or a photo of the worn part. Zhili will confirm the recommended alloy, weight and lead time, and can supply trial pieces for a first plant test.
Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
