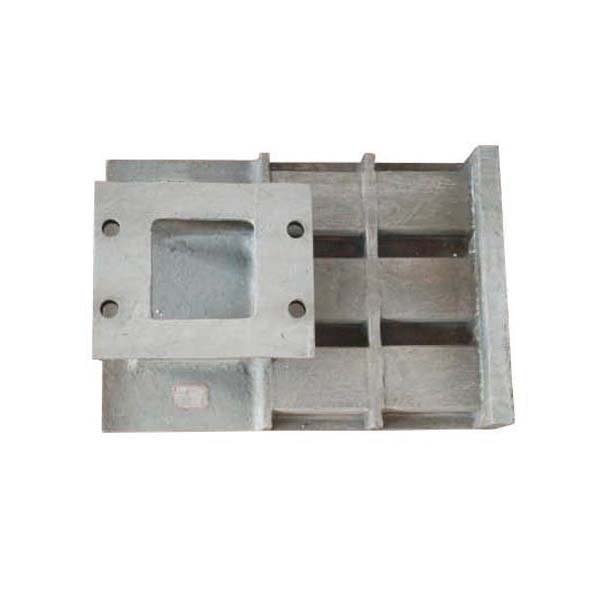

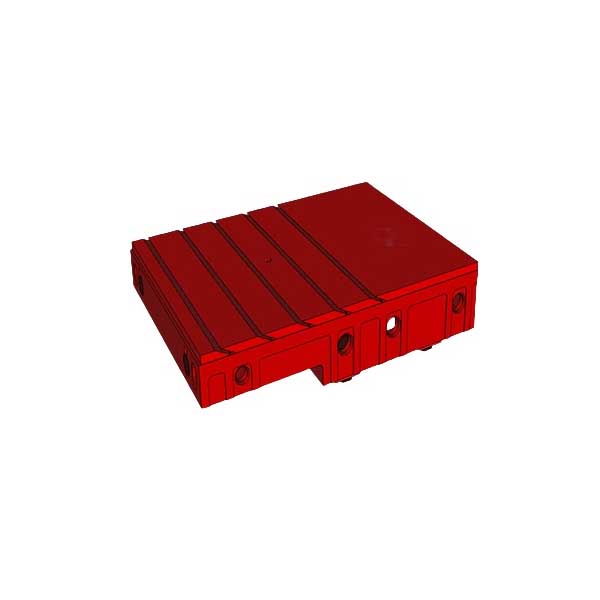

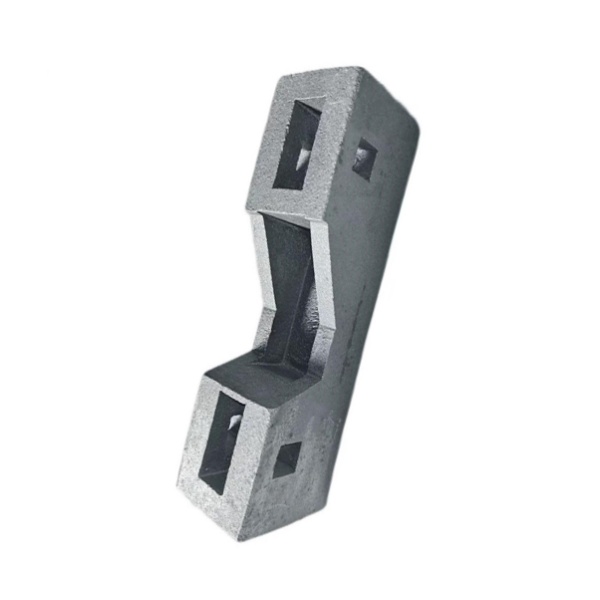

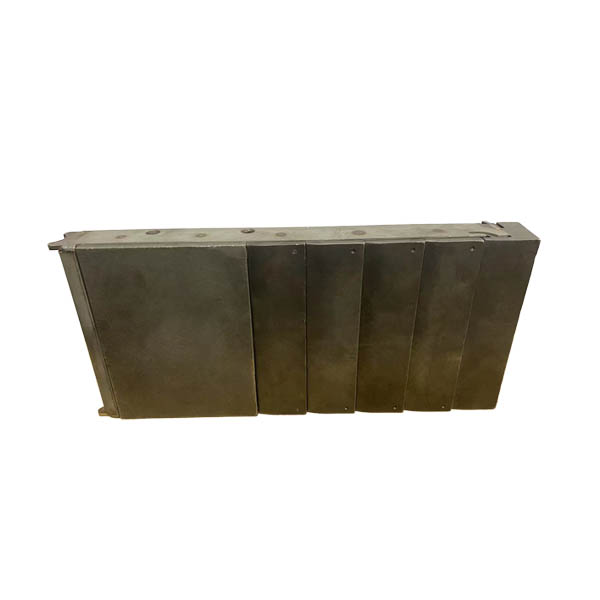

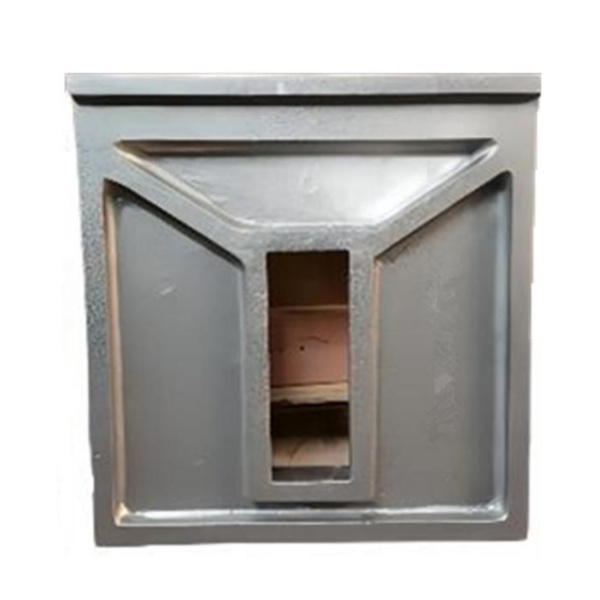

Product name: Grate Cooler plates/Heat-resistant steel grate plate/wind board/Cooler Grate Plates
Production process: Precision casting, Sand casting, Lost foam casting, Centrifugal casting
Material types: 1Cr10MoW2VNbN,12Cr1MoV,25Cr2MoVA,12Cr2MoWVTiB,Low-alloy heat-resistant steel, low-chromium-nickel oxidation-resistant steel,etc.
Applicable industries: Cement, metallurgy, chemical industry, steel, pellets, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.

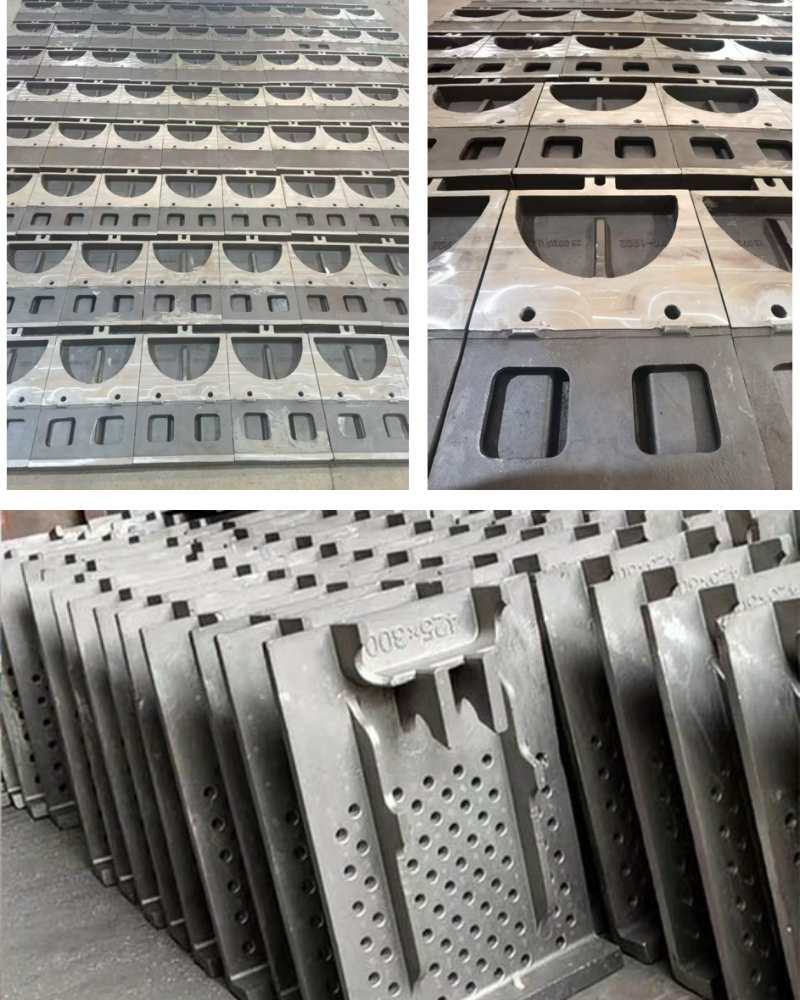

Grate plates for clinker coolers, cast in heat-resistant Cr-Ni alloy steel and high-chromium iron with controlled slot patterns and flatness. Zhili reproduces the original plate geometry so airflow distribution and clinker transport behave as designed, with the option of hardfaced wear zones.
If you need detailed technical information, drawings or a price for a size we have not listed, please email us at cnwearparts@lyzhili.com — we are a customized factory for crusher and mill wear parts and we quote quickly.
Grate plates set the cooling air distribution and the way clinker moves across the cooler. Worn slots leak air, hot spots develop and the whole thermal profile drifts. Zhili casts plates with accurate slot pitch, controlled flatness and the correct alloy for each temperature zone of the cooler.
Grate coolers and cross bar coolers in cement plants, clinker and lime coolers, and hot material handling equipment in steel and mineral processing.
Send the cooler model, drawings or worn plates. We confirm alloy, plate set weight and delivery, and can advise on optimised slot geometry for your clinker.
Share your drawing, OEM part number, operating conditions or a photo of the worn part. Zhili will confirm the recommended alloy, weight and lead time, and can supply trial pieces for a first plant test.
Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
