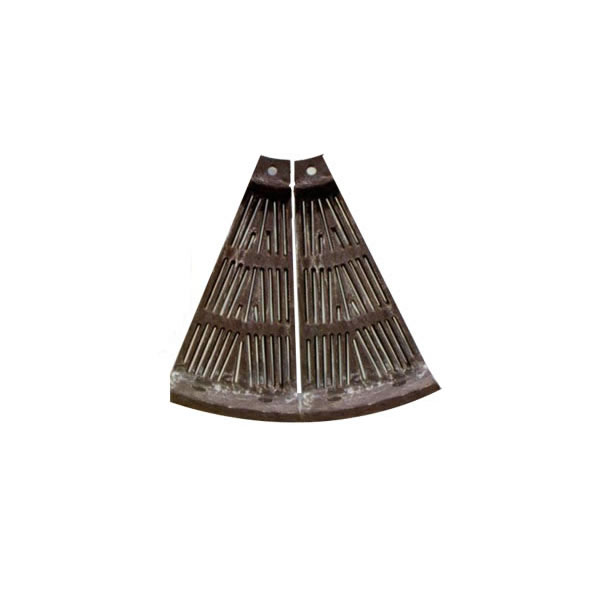

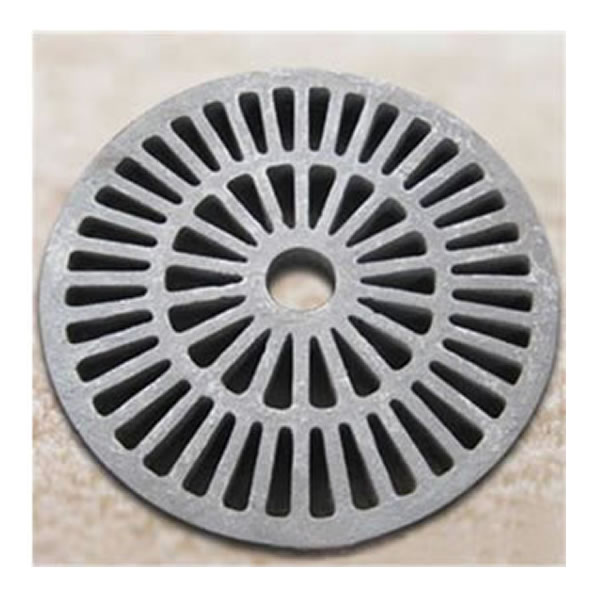

Product name: Discharging device/Diaphragm For Cement Mill/Separating Wearhouse Plate/Intermediate diaphragm
Production process: Casting
Applicable machines: Ball mill/ Semi-autogenous Mill/Cement Mill
Material types: High manganese steel, high chromium cast iron, alloy steel, etc.
Applicable industries: mining, cement plants, coal, steel, power, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.

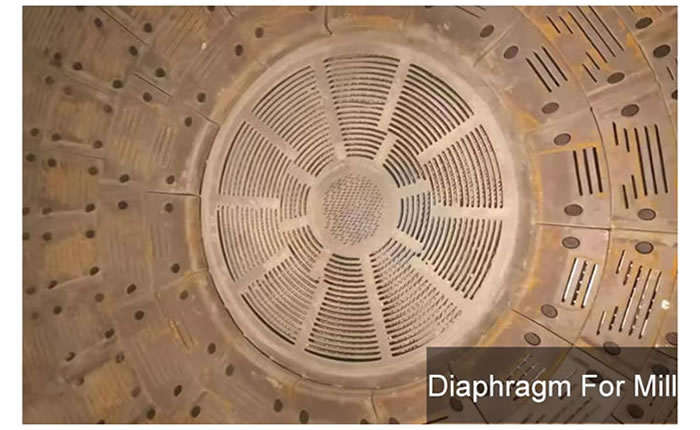

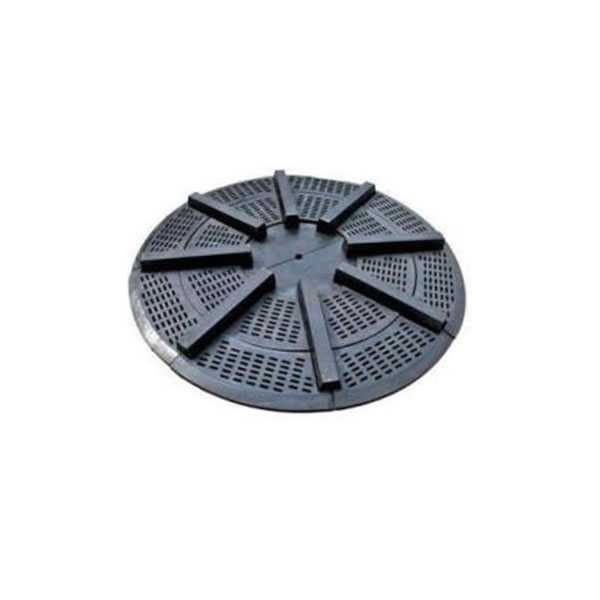

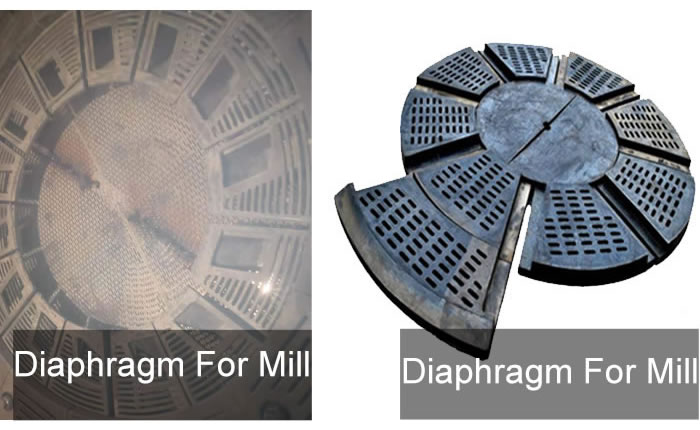

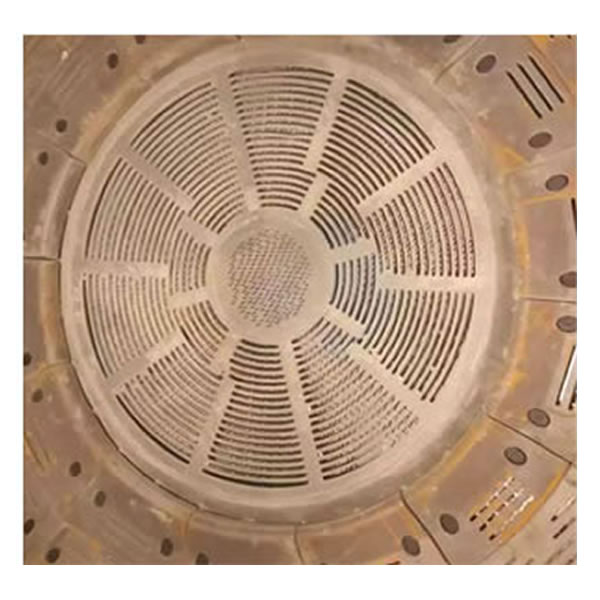

Intermediate diaphragms, discharge diaphragms and separating warehouse plates for ball mills. Zhili casts the grate segments and support rings to your drawing, holding slot geometry and flatness so material passes at the designed rate and chamber separation stays effective.
If you need detailed technical information, drawings or a price for a size we have not listed, please email us at cnwearparts@lyzhili.com — we are a customized factory for crusher and mill wear parts and we quote quickly.
The diaphragm controls how much material moves from one grinding chamber to the next, and how quickly finished product leaves. Worn or distorted slots change the load balance in the mill, raise power consumption and can starve the second chamber. Zhili casts diaphragm components with controlled slot pitch, adequate ribbing and flat mounting faces.
Multi-chamber ball mills in cement plants, raw and clinker grinding circuits, mineral processing ball mills and rod mills, and coal pulverising mills.
Send the mill type, drawings or worn components. We confirm the material, slot size, set weight and delivery, and offer tried-and-tested opening sizes for different feed conditions.
Share your drawing, OEM part number, operating conditions or a photo of the worn part. Zhili will confirm the recommended alloy, weight and lead time, and can supply trial pieces for a first plant test.
Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
