Global Sales OEM tailor design

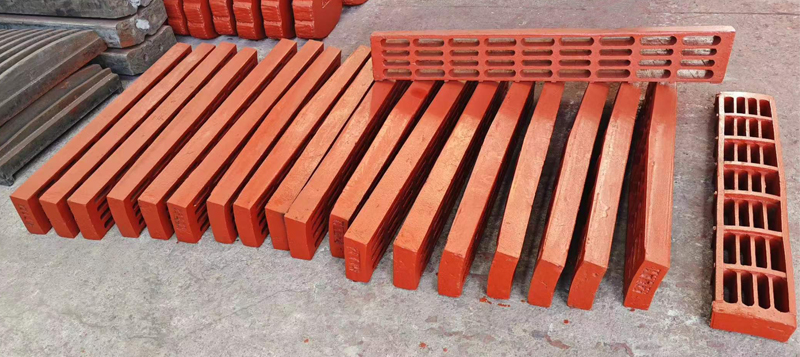

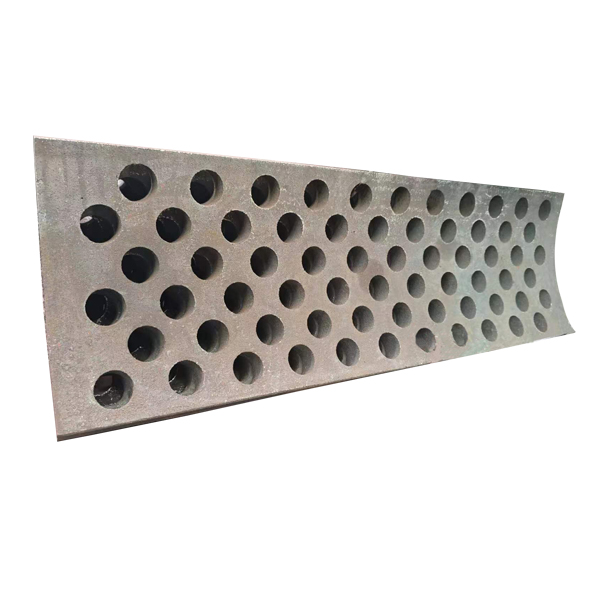

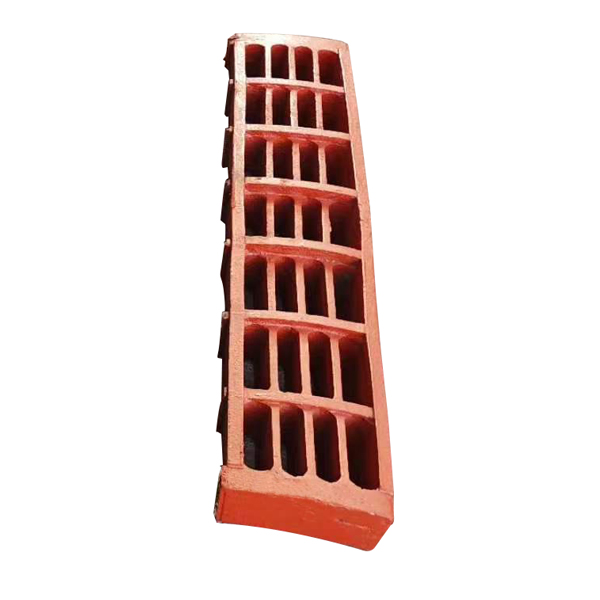

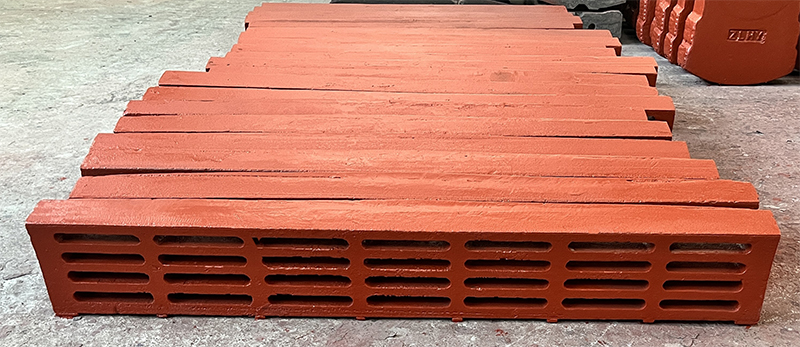

Product name: Crusher Grid Plate,Crusher Screen Plate,Crusher screen Mesh
Production process: Casting
Applicable machines: Clinker crusher, raw material crusher, auxiliary material crusher, metal crusher, etc.
Applicable industries: Cement, stone, coal, steel, metal recycling, etc.
Adaptable materials: Granite, basalt, limestone, river pebbles, cement clinker, quartz stone, iron ore, bauxite, salt, brick, coal, etc.
Material types: High manganese steel(Mn13Cr2/Mn18Cr2), high manganese steel + hard facing layer, high chromium cast iron, alloy steel, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
Grid and screen plates controlling discharge size on hammer mills, clinker breakers and impact crushers. Openings are cast and finished to your specification, and the mounting faces are machined so the plate set sits flat and seals against bypass.
If you need detailed technical information, drawings or a price for a size we have not listed, please email us at cnwearparts@lyzhili.com — we are a customized factory for crusher and mill wear parts and we quote quickly.
Grid and screen plates define the final product size and protect downstream equipment. Because they sit in the hottest, most abrasive part of the crusher, the alloy and the section thickness both matter. Zhili supplies plates with the correct opening pattern, adequate stiffening ribs and flat mounting faces.
Hammer mills and clinker breakers in cement plants, limestone and gypsum crushers, coal and coke handling, aggregate quarries and shredding lines.
Send a drawing, a template or a worn plate and we will confirm the material, opening size and lead time. Advice on optimal opening size for your target gradation is included.
Share your drawing, OEM part number, operating conditions or a photo of the worn part. Zhili will confirm the recommended alloy, weight and lead time, and can supply trial pieces for a first plant test.
Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
