Global Sales OEM tailor design

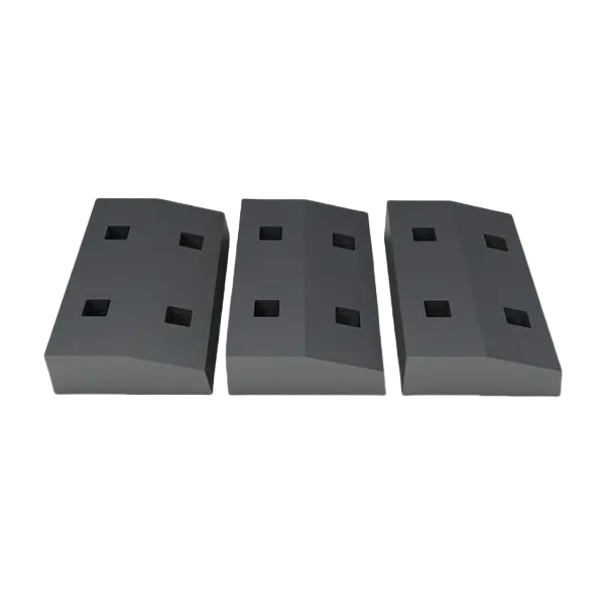

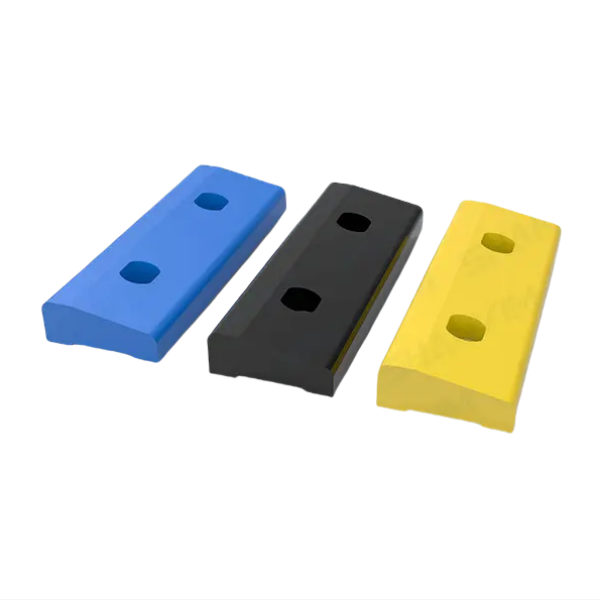

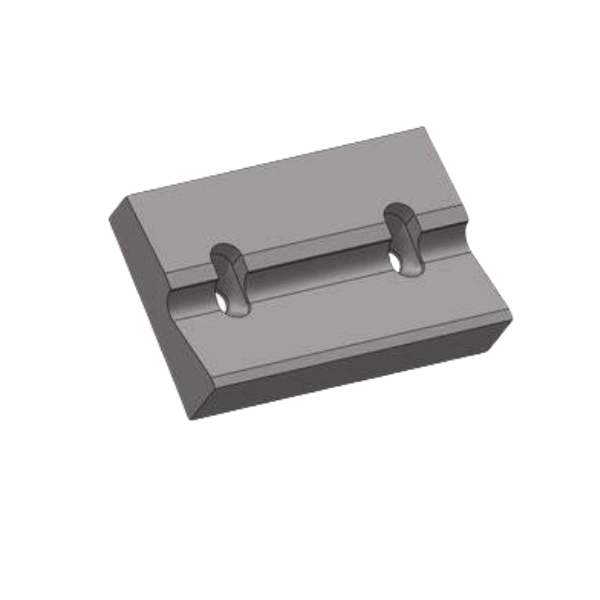

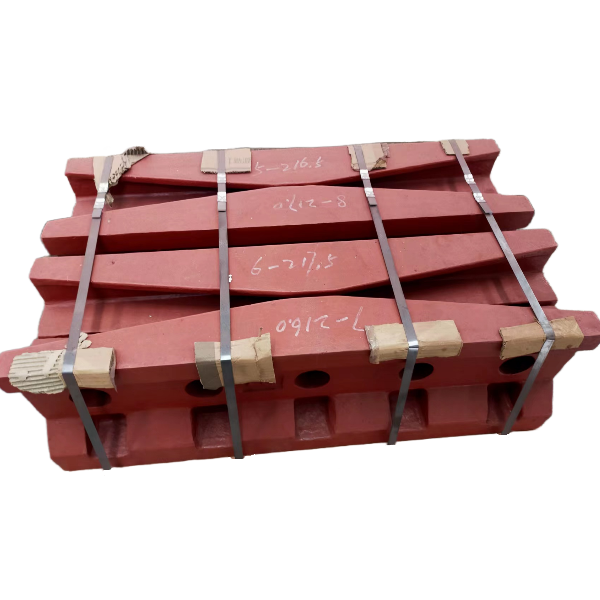

Product name: Impact Plates、Impact Block、Impact Crusher parts
Production process: Casting
Applicable machines: Various models of Impact Crushers
Material types: High manganese steel(Mn13Cr2/Mn18Cr2), high manganese steel insert alloy bars, bimetal composite, high chromium cast iron, alloy steel, etc.
Applicable industries: mining, cement plants, coal, steel, power, etc.
Applicable materials: river pebbles,rock, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
Impact plates and impact blocks for horizontal shaft impactors, cast in high-chromium iron, Mn-Cr alloy or Cr-Mo steel with machined mounting faces. Zhili keeps the plate angle and pitch accurate so the impact chamber geometry, and therefore your product curve, stays on target.
If you need detailed technical information, drawings or a price for a size we have not listed, please email us at cnwearparts@lyzhili.com — we are a customized factory for crusher and mill wear parts and we quote quickly.
Impact plates do the second half of the crushing work in an impactor, and their angle relative to the rotor decides product shape and reduction ratio. Zhili casts plates and blocks with the correct section, ribs and bolt pattern, then machines the mounting and striking faces so replacement parts restore the original chamber geometry.
Horizontal and vertical shaft impactors in cement and aggregate production, limestone and dolomite crushing, sand manufacturing, C&D waste recycling and slag processing.
Send your drawings or OEM references and we will confirm material, weight and lead time. Trial plates are available for first plant runs.
Share your drawing, OEM part number, operating conditions or a photo of the worn part. Zhili will confirm the recommended alloy, weight and lead time, and can supply trial pieces for a first plant test.

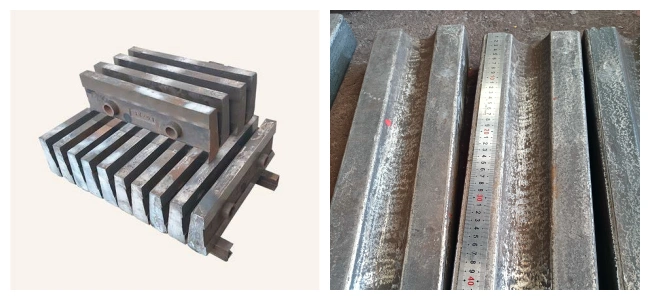

Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
