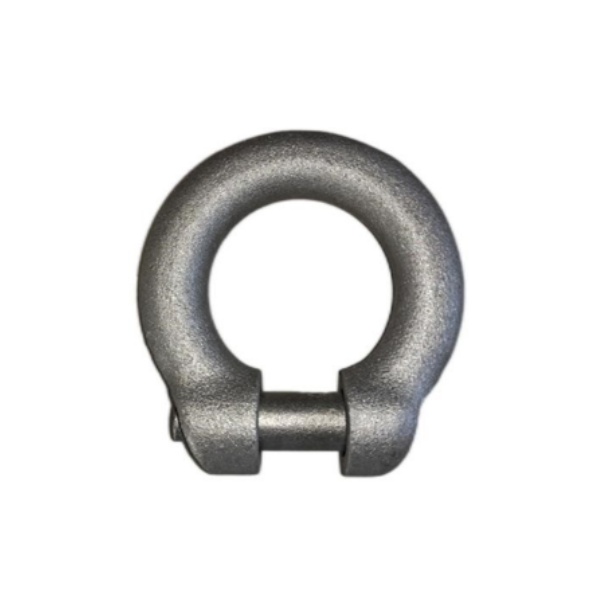

Product name: Shackles/D-type shackles/Bow-shaped shackle/Kiln Chain Shackle
Production process: Casting,Forging
Material types: 115MA,Low-alloy heat-resistant steel, low-chromium-nickel oxidation-resistant steel,etc.
Applicable industries: Cement,metallurgy,chemical industry,architecture,steel,Papermaking,metallurgy, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（cnwearparts@lyzhili.com）, because we are a customized factory for crusher spare parts.

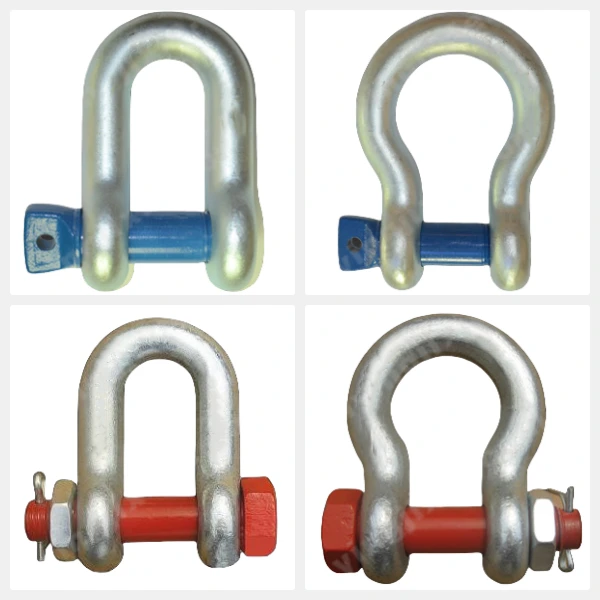

D-type shackles include general lifting shackles, kiln chain shackle,marine shackles and ordinary shackles. They are heavy and large in size, and are generally not installed in places where they are not often disassembled. When choosing a shackle, you should pay attention to the safety factor, which is generally 4 times, 6 times and 8 times.

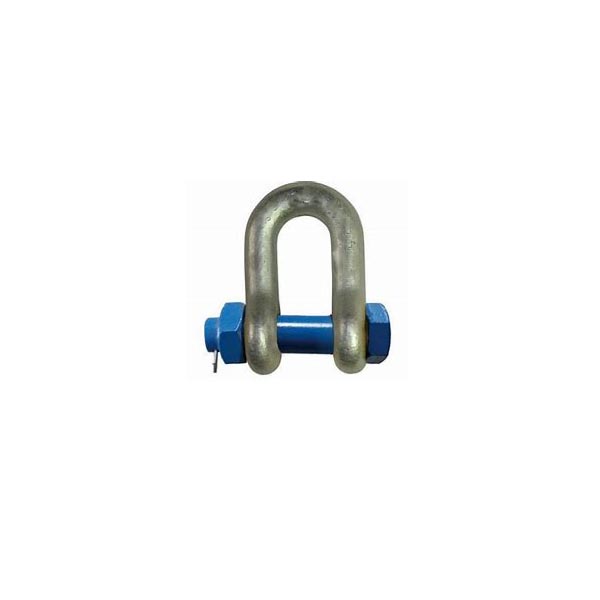

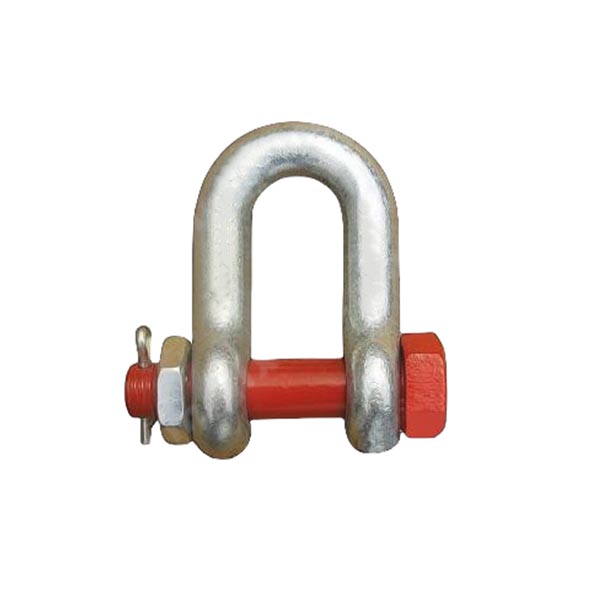

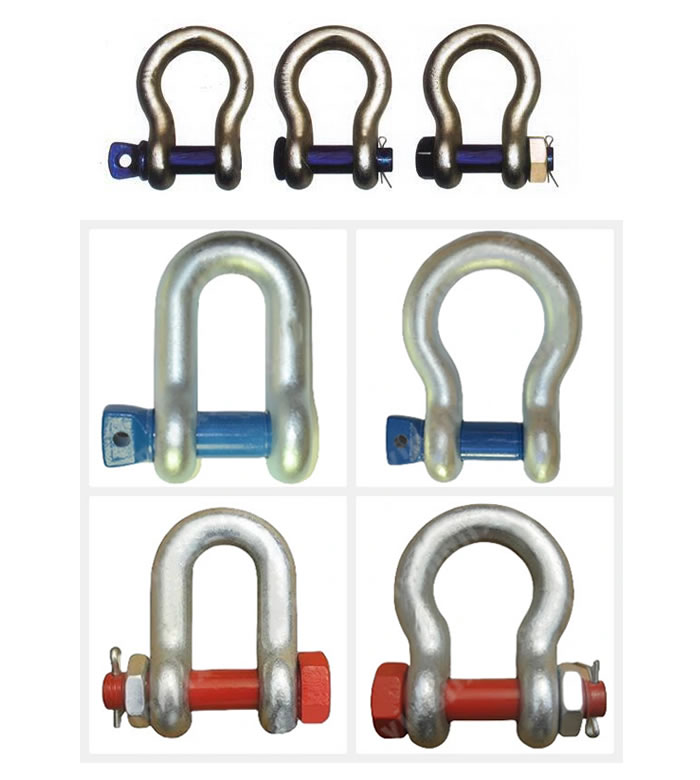

The main shapes of shackles are D-type and bow-shaped, and customized production of other shapes and materials is supported.
Shackles are manufactured in a wide variety of types and sizes. Before choosing the right shackle for application, it is necessary to understand the types of shackles.The shackles come with different pin options, including round pin shackles, screw pin shackles, and bolt-type shackles.
Shackles are available in a variety of material grades, from 8630 alloy to 310 stainless steel, depending on the application.
It adopts a manufacturing method combining alloy steel, die forging and free forging, and is widely used in various industries such as electricity, metallurgy, petroleum, machinery, railways, chemicals, ports, mining, and construction. However, it should be noted that the use of the shackle must not exceed the specified safety load.The metal surface is coated with zinc, nickel, cadmium, composite plating and other coatings to prevent corrosion.
D-type shackle parameters:
Rated load T | A mm | B（Ф） mm | C mm | D（Ф） mm | E mm | F mm | G mm |
| 3 | 42 | 30 | 27 | 60 | 150 | 96 | |
| 5 | 58 | 38 | 34 | 76 | 195 | 126 | 104 |
| 8 | 61 | 40 | 35.5 | 96 | 212 | 133 | 109 |
| 10 | 66 | 45 | 39 | 100 | 235 | 144 | 144 |
| 15 | 70 | 50 | 46 | 89 | 274 | 162 | 159 |
| 20 | 79 | 55 | 51 | 112 | 308 | 181 | 174 |
| 25 | 88 | 60 | 61 | 122 | 329 | 210 | 177 |
| 32 | 100 | 70 | 66 | 138 | 395 | 232 | 215 |
| 40 | 110 | 80 | 75 | 158 | 440 | 260 | 246 |
| 50 | 130 | 90 | 76 | 158 | 468 | 282 | 268 |
| 60 | 130 | 95 | 80 | 178 | 290 | ||
| 80 | 124 | 100 | 92 | 178 | 520 | 308 | 289 |
Standard wear-resistant material with excellent impact resistance and work hardening properties.
Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.
Advanced ceramic composite matrix reinforcement technology for extended service life.
Bimetal composite structure combining wear-resistant surface with tough core material.
Excellent wear resistance with good hardness retention at elevated temperatures.
Rebuilding and reinforcement using advanced hardfacing welding technology.
Customized according to your operating conditions
For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.
For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.
For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
